Configuring Single Sign-On (SSO) with Google

This article explains how to configure the SAML SSO integration of Google Workspace with Quickpass.

Prerequisites

• Google Workspace/GSuite configured with the user accounts that will be used for accessing Quickpass..
• Primary or Super Role in Quickpass
• SuperAdmin role for Google
• All of your Technicians configured in Login Management in Quickpass will need an account in Google with exactly the same email address.
  Manual - https://support.getquickpass.com/hc/en-us/articles/360040722434-How-to-Setup-Quickpass-Dashboard-Logins
  Bulk Import - https://support.getquickpass.com/hc/en-us/articles/4411037813783-How-to-Bulk-Import-Quickpass-Dashboard-Logins
  • Note the Primary and Super Roles will still be able to login with their Quickpass Account username and password to allow access in the case of challenges with the SSO.
• Initial configuration steps as per https://support.getquickpass.com/hc/en-us/articles/4419178721559-Setting-up-Dashboard-Logins-for-SSO-SAML-
• We suggest creating a specific Google Security Group to use and adding the corresponding Quickpass Login Role email addresses to this group
• Before turning this feature on, log in to your Quickpass account twice - once in a regular browser and once in an incognito/private window or another browser. This is to ensure that you are still logged in to your account if you get locked out in the other window.

Instructions

1. Login to the Google Admin page with your Super Admin role.
   https://admin.google.com

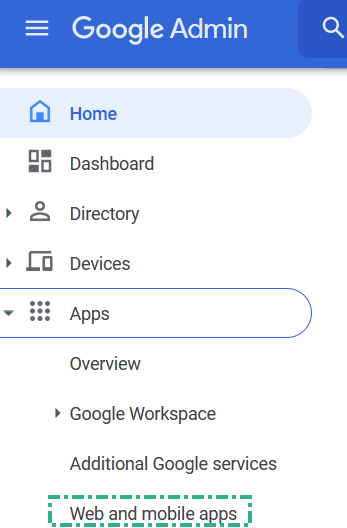

2. Click on Apps -> Web and mobile Apps

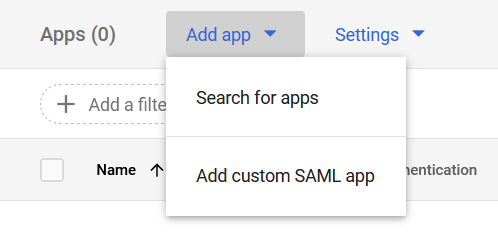

3. Click on the Add App dropdown and select Add custom SAML app

4. Type in a Name for the App - (we suggest Quickpass SSO)
5. Type in a Description if you wish.
6. Add the App Icon if you wish (you can download this image file to use by right clicking and selecting Save Image As)

7. Click Continue
8. On the SSO for SAML Apps configuration page, copy and paste these values into the appropriate section of the Quickpass Dashboard for setting up Authentication Options (https://support.getquickpass.com/hc/en-us/articles/4419178721559-Setting-up-Dashboard-Logins-for-SSO-SAML-)

9. Click Save on the Quickpass Dashboard
10. Back on the Google Custom SAML app screen click Continue
11. Populate one of these values into the Google Page depending on your Quickpass Tenant Location

    1. ACS URL - Assertion Consumer Service (ACS) URL

       NA or Oceania	https://admin.getquickpass.com/api/auth/sso/login/callback
       EU	https://eu-admin.getquickpass.com/api/auth/sso/login/callback

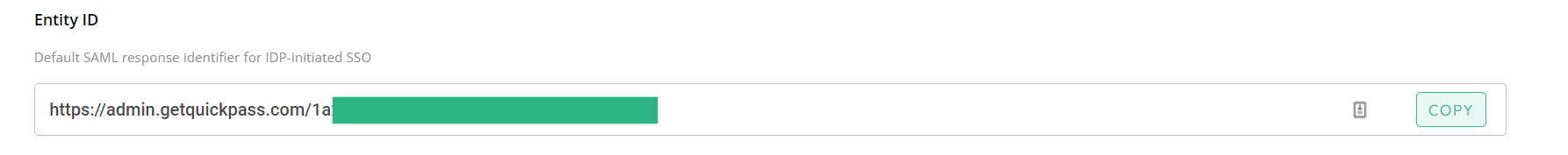

    2. Entity ID - Copy and Paste the value shown on the Quickpass Dashboard

    3. Start URL - Populate one of these values into the Google Page depending on your Quickpass Tenant Location


       NA or Oceania	https://admin.getquickpass.com
       EU	https://eu-admin.getquickpass.com

    4. Put the check box in the "Signed Response" box.

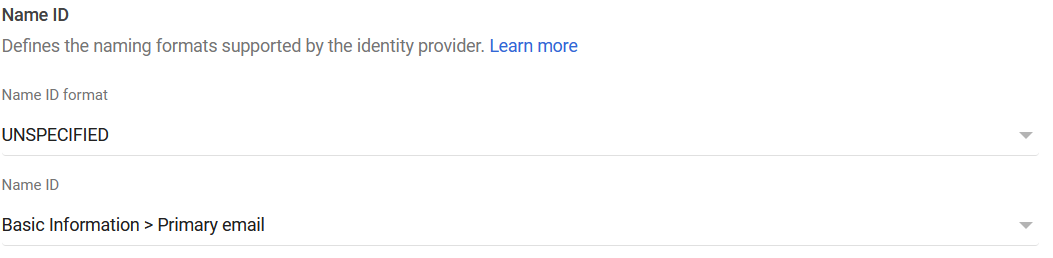

    5. NameID - Change the values to match this screen

    6. Click Continue

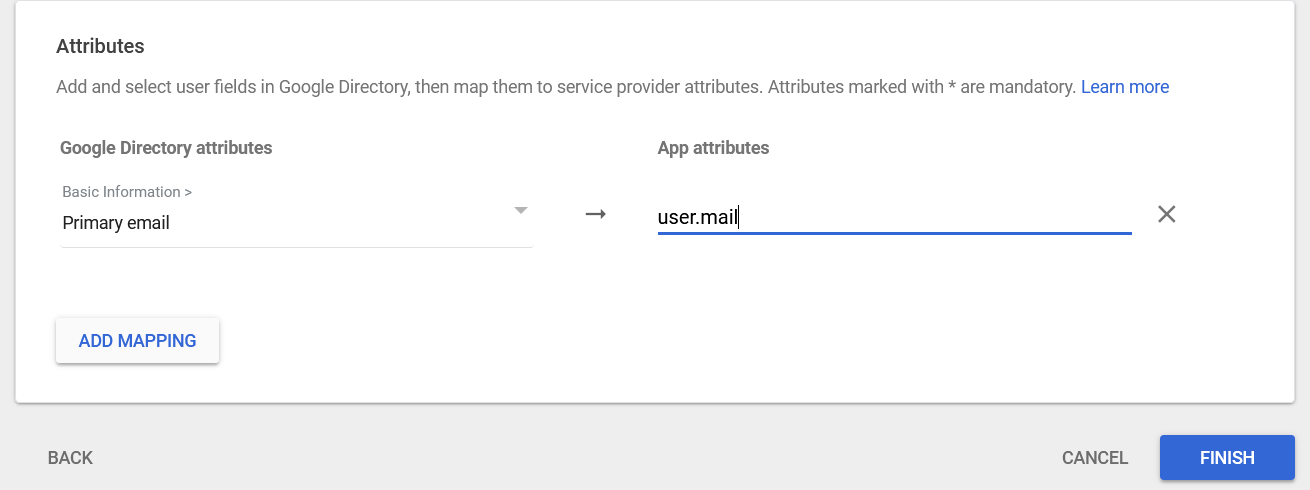

12. On the Attributes screen click ADD MAPPING button and populate the values to look like this

13. Click Finish
14. Once this configuration is completed you will be taken to a page in the Google Admin screen that looks like this.

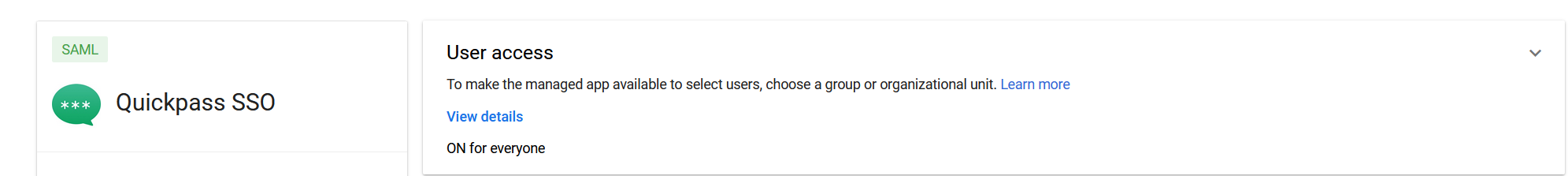

15. Change the User Access options to match your desired Google Security Group you configured.

Testing

1. In another browser or an Incognito/Private Browser Log open the Quickpass Dashboard


   NA or Oceania	https://admin.getquickpass.com
   EU	https://eu-admin.getquickpass.com

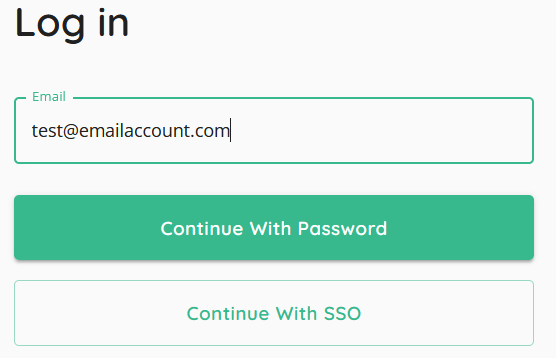

2. Enter the Email address of your login and click Continue with SSO



3. You should be prompted to log in with the Google Credentials for the account you are testing with.
   1. Login with the Credentials for the Test account

   2. Approve the Google Authenticator or other approved login method
   3. You should be taken to the Quickpass Dashboard Customers list.
