Configuring single sign-on (SSO) with Okta

This article explains how to configure the SAML SSO integration for Okta.

Prerequisites

Administrative Account with permissions to setup SSO in Okta
Primary or Super Role for Quickpass
All of your users under your account in Quickpass will need an account in Okta with exactly the same email address. We don’t create user accounts under SSO.
Manual - https://support.getquickpass.com/hc/en-us/articles/360040722434-How-to-Setup-Quickpass-Dashboard-Logins
Bulk Import - https://support.getquickpass.com/hc/en-us/articles/4411037813783-How-to-Bulk-Import-Quickpass-Dashboard-Logins
Initial configuration steps as per https://support.getquickpass.com/hc/en-us/articles/4419178721559-Setting-up-Dashboard-Logins-for-SSO-SAML-
Before turning this feature on, log in to your Quickpass account twice - once in a regular browser and once in an incognito/private window or another browser. This is to ensure that you are still logged in to your account if you get locked out in the other window.
Ensure that you have Okta Password and Sign On Policies as well as Multifactor configuration setup for your team to use with Okta.
NOTE: Technicians Logging in to the Dashboard will be required to click on the "Log in with SSO" link in order to sign into the Dashboard with thier login credentials.

Instructions

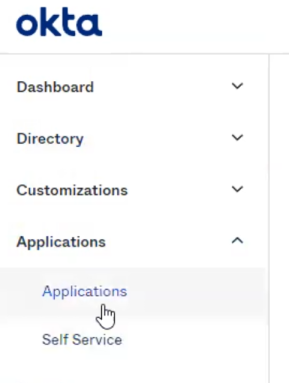

Log in to the Okta portal. In the left-hand menu, click Applications > Applications.

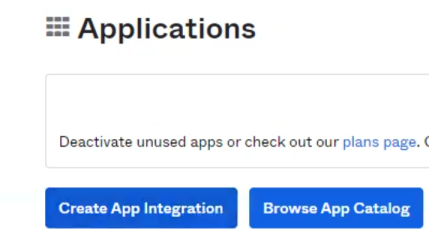

Click Create App Integration

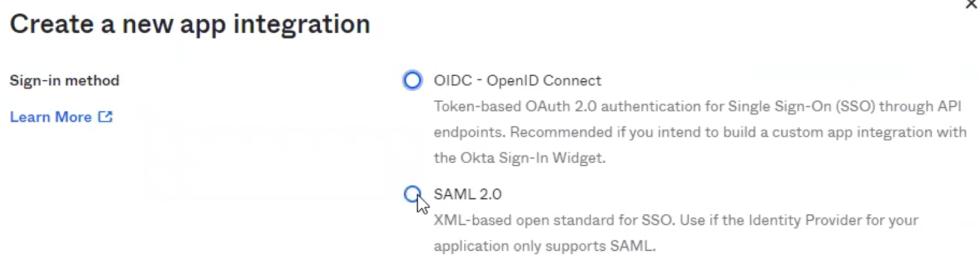

Select the SAML 2.0 option on the Create a new app Integration screen.

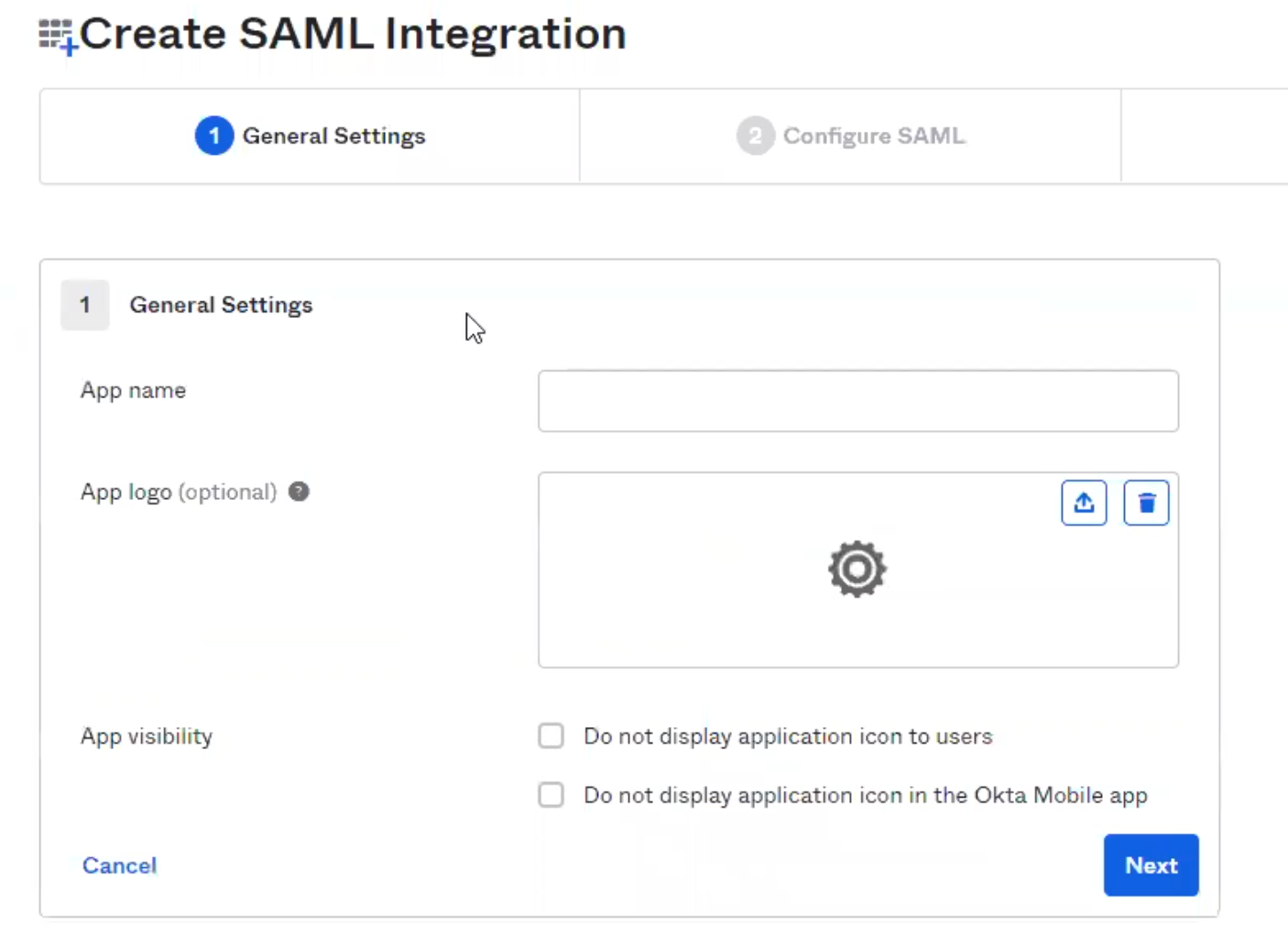

Give the new app a name (we suggest Quickpass SSO) click on Next

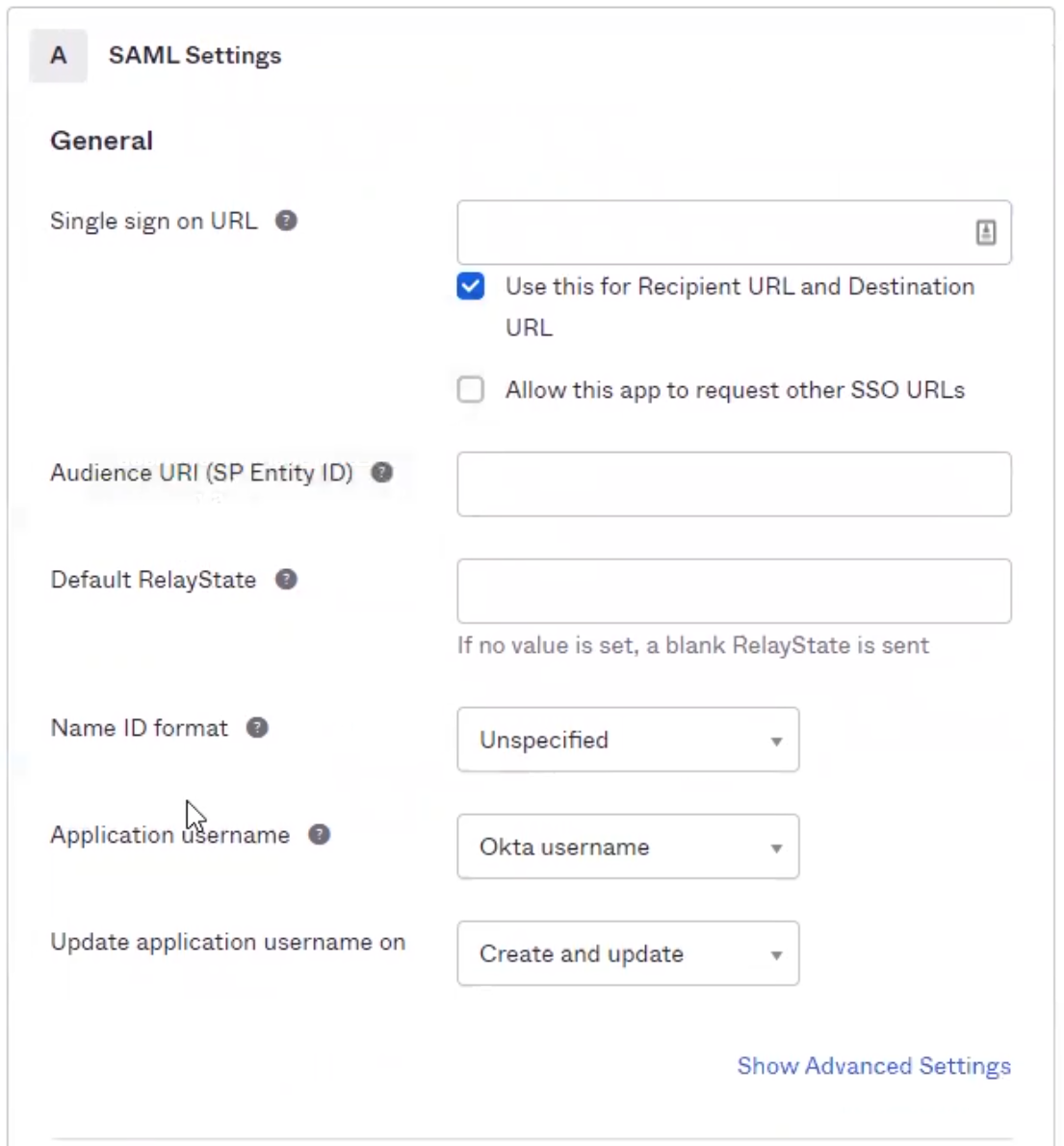

On the Configure SAML page enter the following URLs in the fields provided:
1. Single Sign On URL
  1. NA or Oceania https://admin.getquickpass.com/api/auth/sso/login/callback

    EU
    https://eu-admin.getquickpass.com/api/auth/sso/login/callback
2. Audience URI (SP Entity ID)
  1. Enter your Quickpass Entity ID value from the Quickpass Dashboard
3. Default RelayState
  1. Enter your Quickpass Entity ID value from the Quickpass Dashboard
4. Application username: Okta username
5. Click Next

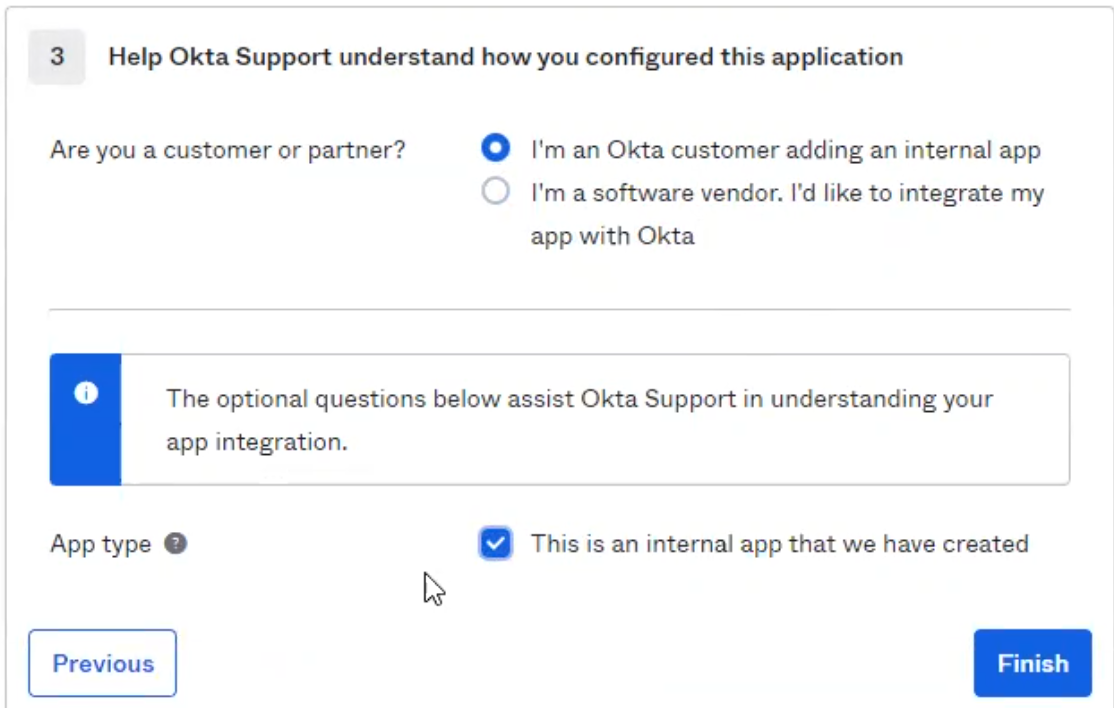

On the Feedback Page
1. Select the "I am an Okta customer adding an internal app" radio button.
2. Ensure the "This is an internal app that we have created" check box is selected.
3. Click Finish
The next page of the setup will load.

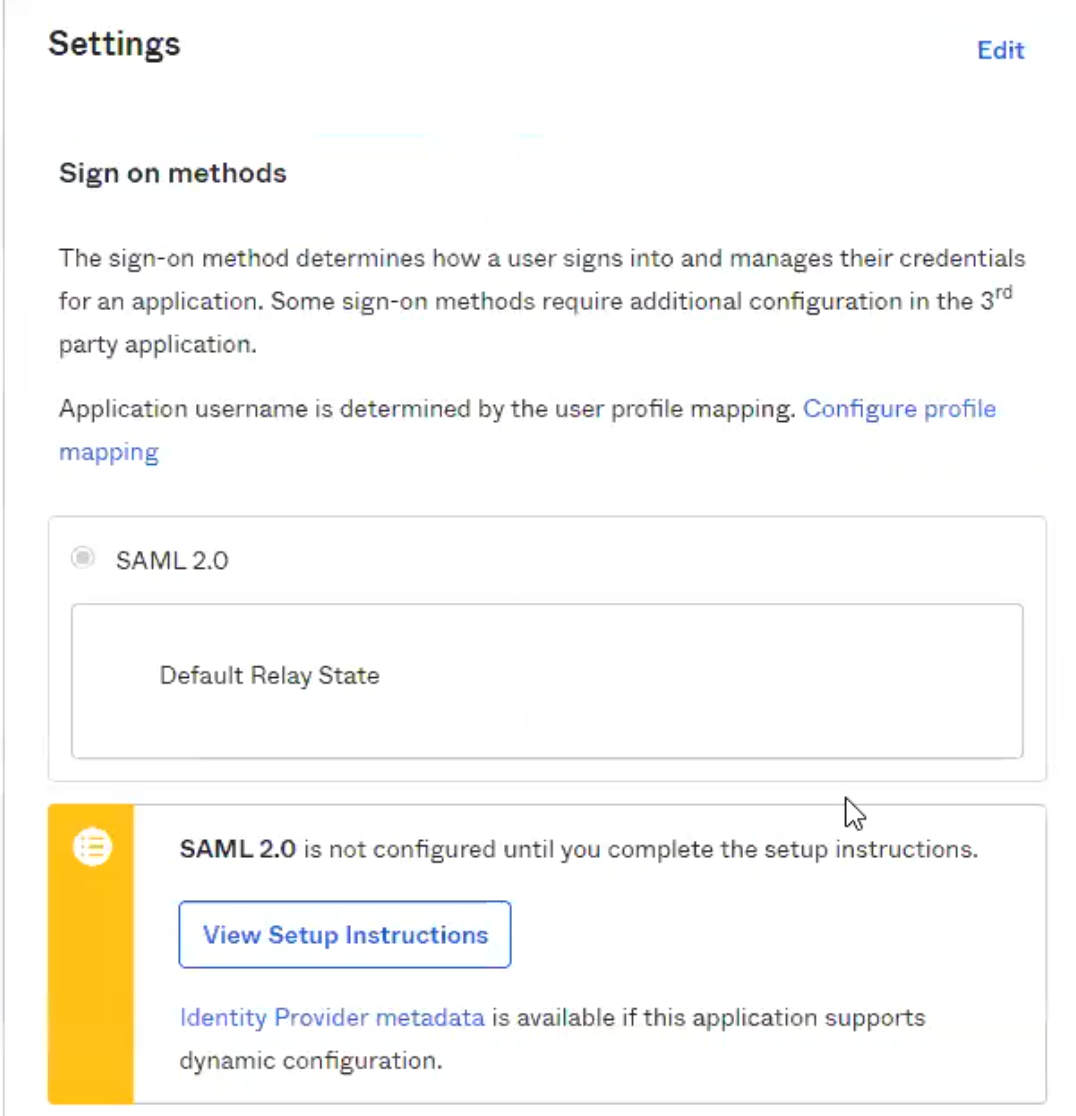

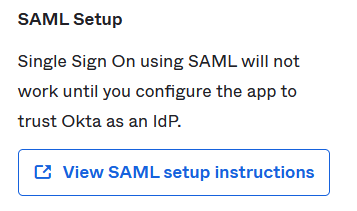

Select View Setup Instructions

Old SSO Configuration Screen New SSO Configuration Screen

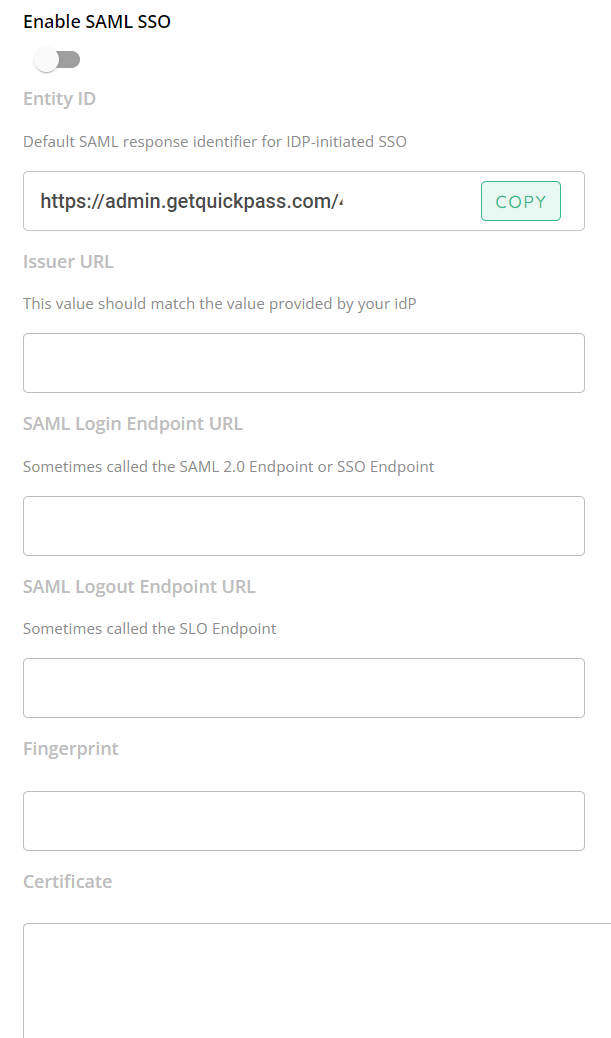

1. Back on the Quickpass Dashboard SSO Configuration page
  1. Copy and Paste the value from the Okta Setup Instructions page to match this diagram
  2. To Calculate the Fingerprint Value - copy the certificate from this page, or download the certificate and edit it in a text editor. Copy the value from there (Ensure there are no leading or trailing spaces)
    1. Go to https://developers.onelogin.com/saml/online-tools/x509-certs/calculate-fingerprint.
    2. Paste in the certificate you downloaded or copied.
    3. Select sha256 in the Algorithm drop-down menu.

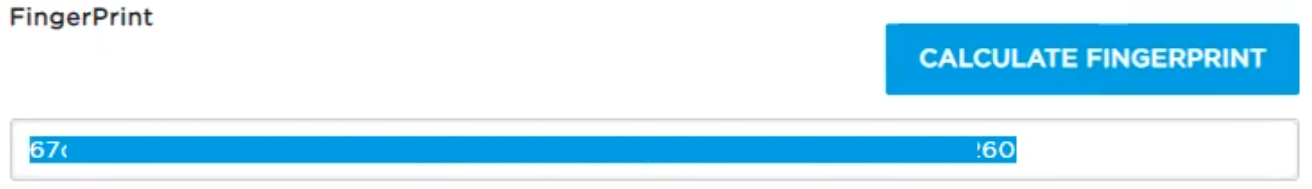

    4. Click the CALCULATE FINGERPRINT button. The fingerprint looks something like:
    5. Copy and Paste that value into the Quickpass SSO configuration "Fingerprint" box.
  3. Click Save on the Quickpass SSO Configuration page.
2. Back on the Okta Configuration page

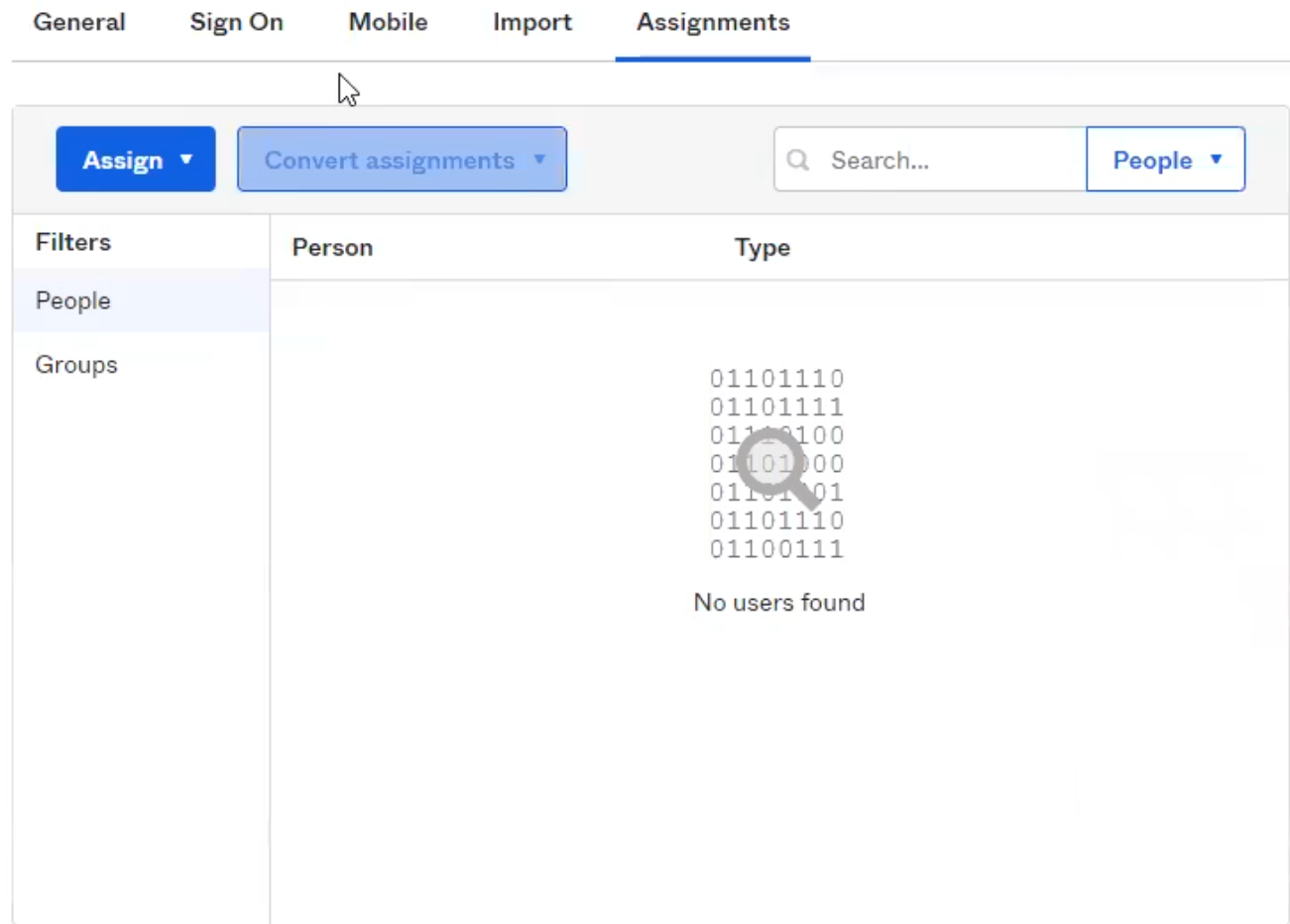

  1. Click on the Assignments page
  2. Assign directly to the "People" or to an Okta Group that contains the Quickpass Accounts that you have already created on the Login Management page: https://support.getquickpass.com/hc/en-us/articles/360040722434-How-to-Setup-Quickpass-Dashboard-Logins
Test a login to the Quickpass Dashboard by opening a NEW browser (different than what you are using now) or use a new Incognito/InPrivate/Private Session, and selecting Login with SSO. Follow the prompts to sign in using the Okta SSO Multi Factor you have set up.
